Plastic or rubber mixing compound masterbatch kneader machine for lab

1 Set
MOQ
$12,000.00(1 - 1 Sets) $11,000.00(>=2 Sets)
Price

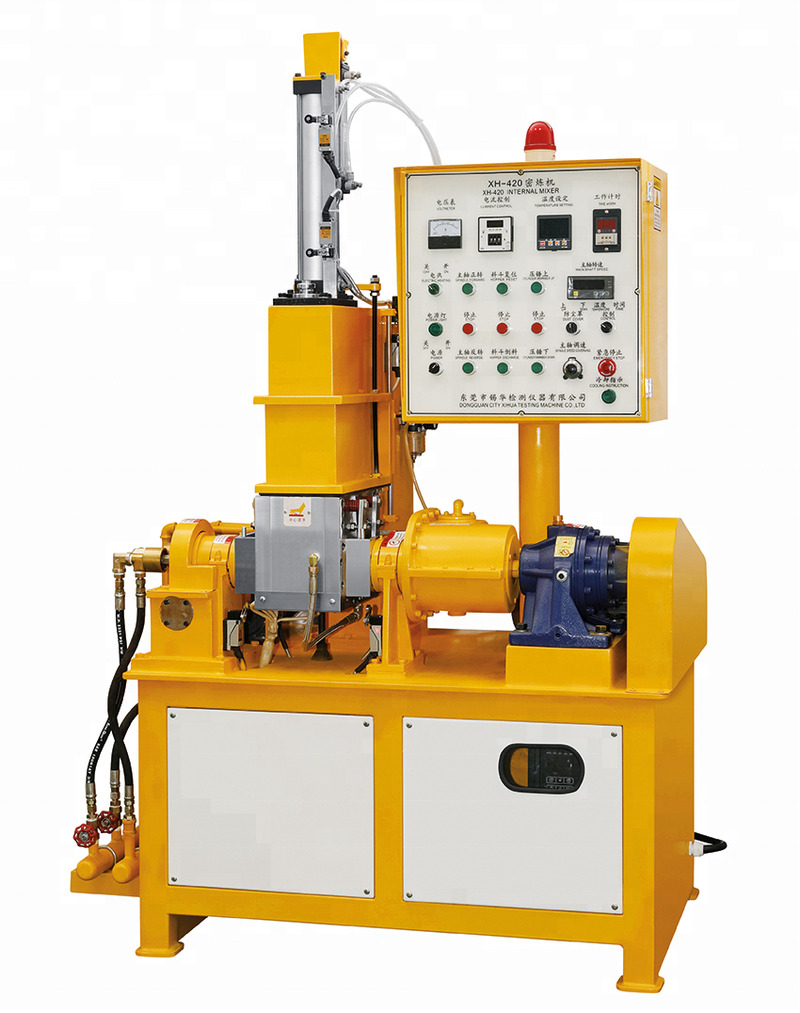

Plastic or rubber mixing compound masterbatch kneader machine for lab
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New, New
Mixing Capacity(L): 1 L
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear
Tilting Angle(°): 110°
Power (kW): 5 KW
Compressed Air Pressure(MPa): 0.5 MPa
Feeding Mode: Back, Front
Model Number: XH-420-1L
Voltage: 380V
Dimension(L*W*H): 1320*750*2200mm
Year: 2020
Warranty: 1year
Key Selling Points: High-accuracy
Weight (KG): 1300 KG
Showroom Location: None
Applicable Industries: Plastic Or Rubber
Type: Rubber Mixer
Mixing Capacity: 1L,3L,5L,10L
Rotor Speed: 40/31r/m
Cylinder Diameter Of Top Peg: 80mm
Compressed Air Pressure: 0.5`~0.8Mpa
Heating Power: 10KW
Package: Wooden Case
Size: 2100*1100*2300mm
Weight: 1200kg
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Model Number: XH-420-1L
Payment & Shipping Terms
Packaging Details: wooden box/1 set
Product Description
Product Description

Product Application

This machine is suitable for stiring,kneading and dispersion of all kinds of chemical raw materials,such as plastic ,rubber, synthetic rubber hot melt adhesive, etc.And then put the formula into the production line.This machine is equipped with PLC man-machine interface,temperature control module,and heat conduction oil heating cooling system.Make it easy to operate,fast heating and cooling.With this machine,you can do many different experiments of all kinds of material in a short time.

XH-420-10L Technical Parameter
Mixing Volume
1L,3L,5L,10L
Control Mode
Key control/PLC control (optional)
Drive Model
18.5KW
Flip Motor
0.75KW
Rotor Speed(front and rear)
40r/30min (speed adjustable)
Flip Angle
110℃
Air pressure
0.3-0.5mpa
Volume(H*W*D)
2100*1100*2300mm
Weight
1800kgs
Power Supply
3∮, AC380V

Main Features

1, the local device automatic temperature and time control system, precise operation, simple and easy, mixing up and take the best uniform dispersion effect.
2, the mixing tank to be dumped style, mixing shaft mechanical seal leak dry cleaning so easy to change colors easily.
3, pressurized sealed mixing chamber to ensure the quality of the mixture outside and prevent environmental pollution.
4, mixing tank using advanced alloy steel, wear-resistant steel surfaces are treated by surface abrasion particularly good, hard chrome plating.
5, electronic control requires adjustments according to customer requirements.

Detailed Images

Machine Parts

Name: Control Panel

Brand:XIHUA

Original: CHINA


Main Features

Name:Mixing Chamber
Brand: XIHUA
Original: CHINA


In a closed room through a different ratio of the rotos rotating shearing, extrusion, mixing action, plastic (mixed) and then make the material you need.

Machine Parts

Name: Agitator Shaft
Brand: XIHUA
Original: CHINA

The two sides of the blade have a spiral-angled blade shaft enclosed in a "w" shape space. Under certain pressure and temperature conditions, the two shafts are relatively differentially operated to stir the dispersion compound.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Contact Information

Dongguan Xihua Testing Machine Co.,Ltd


WhatsApp: +86 15625539168


Wechat: +86 15625539168


Website: www.lab-xh.com


Our Exhibition
Packing & Delivery
Packaging
Size
2100*1100*2300mm
Weight
1800kgs


Packaging Details


wooden box/1 set
