Home /Products/Rubber Kneader Machine/Rubber machine factory direct sales energy saving and consumption reduction rubber kneader for mechanical equipment

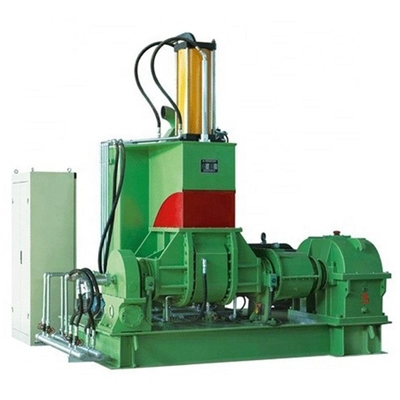

Rubber machine factory direct sales energy saving and consumption reduction rubber kneader for mechanical equipment

1.0 Sets
MOQ
Rubber machine factory direct sales energy saving and consumption reduction rubber kneader for mechanical equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Mixing Capacity(L): 75 L
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2021
Warranty Of Core Components: 2 Years
Core Components: PLC, Motor, Gear
Power (kW): 15 KW
Compressed Air Pressure(MPa): 0.8 MPa
Model Number: X(S)N-75x30
Voltage: Customized
Warranty: 1 Years
Key Selling Points: High Productivity
Weight (KG): 9000 KG
Showroom Location: Canada, India, America
Applicable Industries: Rubber Machine
Machine Type: Rubber Kneader Machine
Production Capacity: 80-100kg Per Batch
Discharging Way: By Motor
After Warranty Service: Video Technical Support, Online Support, Spare Parts,
Motor Type: Hard Alloy Welding
Machine Color: Blue/ Green/ As Your Requested
Certification: HangSen
Basic Infomation
Certification: HangSen
Model Number: X(S)N-75x30
Payment & Shipping Terms
Supply Ability: 30 Set/Sets per Month
Product Description
1..Four shaft head sealing, using new technology of YG8 cemented carbide Mosaic, not leak powder and glue. 2..The mixing chamber using the 20 # boiler plate which is processing by forging and fire. 3..The two Shaft is to use high-quality steel 42 Cr Mo (Grom) made by forging heat treatment. 4..The rotor shaft spindle seam D632 hard alloy welding electrode welding. 5.Two support the rotor shaft bolt and the mixing chamber after polishing hard chromium plating of 0.15-20m not only corrosion, rust, and hard wear. 6.Two rotor shaft, mixing chamber, top bolt, gearbox casing and so on , polishing after heat treatment furnace, temperature 6-700 degrees, eliminate stress, enhancing the toughness, increased by more than five times of the service life.
Model
X(S)N35
X(S)N55
X(S)N75
X(S)N110
Total volume of mixing chamber (L)
75
125
180
250
Working volume of mixing chamber (L)
35
55
75
110
Driving motor power (KW)
55
75
110
185
Tilting motor power (KW)
5.5
5.5
5.5
7.5
Tilting angle
110
110
110
110
Rotational speed of the rotor ( front/rear) (r/min)
36/30
36/30
36/30
30/24.5
Pressure of compressed air (Mpa)
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
Cooling water pressure (Mpa)
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
Size (L*W*H) (mm)
3150*1900*2880
3280*2120*3090
3280*2220*3250
4070*2712*3580
QINGDAO HANGSEN INDUSTRY AND TRADE CO., LTD was established in 1967，have employee more than two hundred, which have two factories. we are manufacturer for package machine and rubber machine, which have more than forty years’ experience. Packaging machinery includes high speed flute laminator, middle speed flute laminator, 5 ply flute laminator, cardboard laminator, flip flop stacker machine as well as other related paper package machines. For rubber machine, we mainly produce rubber kneader series, rubber mixing mill series, rubber extruder and strainer series, rubber powder line, rubber reclaim sheet line, rubber tube line, rubber mat line, tire making line and so on, we can make more than 200 series rubber machines, including environment protect machines, we also can make rubber machine according to customers requirement. Till now, HANGSEN have exported to more than forty counties. including USA, Greece, Spain, Poland, France, Italy, Algeria, Egypt, India, Russia, Argentina, Vietnam, Brazil, Indonesia, Thailand and so on. The company uses exquisite and professional technology to serve all customers and is widely praised and appreciated by customers.
