Factory Internal Rubber Kneader Rubber Lab Mixer Banbury Mixer

1 Set
MOQ
$13,800.00(1 - 1 Sets) $11,000.00(>=2 Sets)
Price

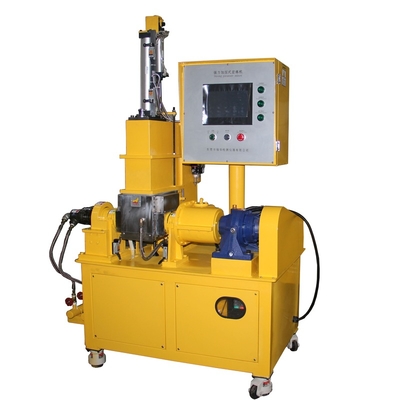

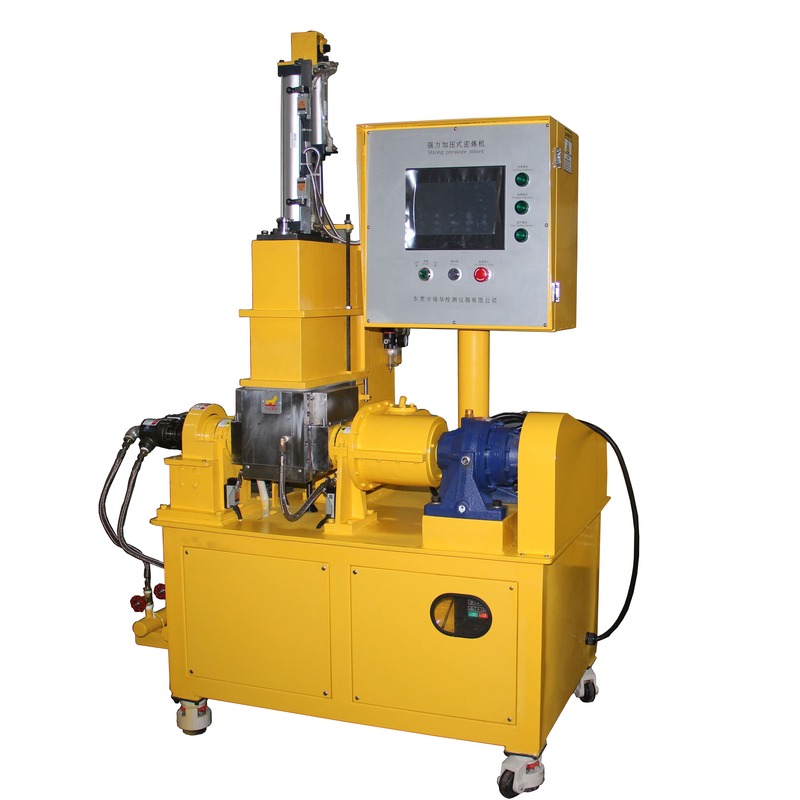

Factory Internal Rubber Kneader Rubber Lab Mixer Banbury Mixer
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Batch Time(times/hour): 6 Times/hour
Total Capacity(L): 3 L
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Bearing, Motor
Model Number: XH-420-3L
Voltage: 380v
Dimension(L*W*H): 1900*1300*1500mm
Year: 2022
Warranty: One Year
Key Selling Points: High Safety Level
Power (kW): 9 KW
Weight (KG): 800 KG
Showroom Location: Egypt, Germany, Viet Nam, Peru, Mexico, Russia, UAE
Applicable Industries: Manufacturing Plant, Plastic Industry, Rubber Industry
Type: Rubber Mixer
After-sales Service Provided: No Overseas Service Provided
Color: Yellow
Package: Wooden Case
Delivery Time: Within 30 Days
Certification: ISO
Basic Infomation
Certification: ISO
Model Number: XH-420-3L
Payment & Shipping Terms
Packaging Details: wooden box/1 set
Product Description
Product Description

Product Application

This machine is suitable for stiring,kneading and dispersion of all kinds of chemical raw materials,such as plastic ,rubber, synthetic rubber hot melt adhesive, etc.And then put the formula into the production line.This machine is equipped with PLC man-machine interface,temperature control module,and heat conduction oil heating cooling system.Make it easy to operate,fast heating and cooling.With this machine,you can do many different experiments of all kinds of material in a short time.

XH-420-3L Technical Parameter
Mixing Volume
3L
Control Mode
Key control/PLC control (optional)
Drive Model
7.5KW
Flip Motor
0.75KW
Rotor Speed(front and rear)
40r/30min (speed adjustable)
Flip Angle
110℃
Air pressure
0.3-0.5mpa
Volume(H*W*D)
1900*1300*1500mm
Weight
1300kgs
Power Supply
3∮, AC380V

Main Features

1, the local device automatic temperature and time control system, precise operation, simple and easy, mixing up and take the best uniform dispersion effect.
2, the mixing tank to be dumped style, mixing shaft mechanical seal leak dry cleaning so easy to change colors easily.
3, pressurized sealed mixing chamber to ensure the quality of the mixture outside and prevent environmental pollution.
4, mixing tank using advanced alloy steel, wear-resistant steel surfaces are treated by surface abrasion particularly good, hard chrome plating.
5, electronic control requires adjustments according to customer requirements.

Detailed Images

Machine Parts

Name: PLC Control System

Brand: XIHUA

Original: CHINA



Main Features

Name:Mixing Chamber
Brand: XIHUA
Original: CHINA

In a closed room through a different ratio of the rotos rotating shearing, extrusion, mixing action, plastic (mixed) and then make the material you need.

Machine Parts

Name: Agitator Shaft
Brand: XIHUA
Original: CHINA

The two sides of the blade have a spiral-angled blade shaft enclosed in a "w" shape space. Under certain pressure and temperature conditions, the two shafts are relatively differentially operated to stir the dispersion compound.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1900*1300*1500mm
Weight
1300kgs


Packaging Details




wooden box/1 set
