Home /Products/Rubber Mixer Machine/Factory 10L Kneader Mixer Internal Laboratory Rubber Plastic Banbury Internal Mixer

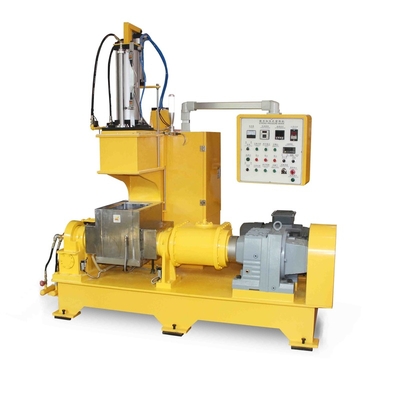

Factory 10L Kneader Mixer Internal Laboratory Rubber Plastic Banbury Internal Mixer

1 Set
MOQ
$23,500.00(1 - 1 Sets) $20,000.00(>=2 Sets)
Price
Factory 10L Kneader Mixer Internal Laboratory Rubber Plastic Banbury Internal Mixer
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Batch Time(times/hour): 5 Times/hour
Total Capacity(L): 10 L
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Bearing, Gearbox, Motor
Model Number: XH-420-10L
Voltage: 380v
Dimension(L*W*H): 1320*750*2200mm
Warranty: 1 Year
Key Selling Points: Easy To Operate
Power (kW): 10 KW
Weight (KG): 1500 KG
Showroom Location: Egypt, Germany, Pakistan, Mexico, Thailand, South Korea, Malaysia
Applicable Industries: Manufacturing Plant, Laboratory, Rubber Industry, Plastic Industry
Type: Rubber Mixer
Color: Yellow
Power(W): 11kw
Basic Infomation
Model Number: XH-420-10L
Payment & Shipping Terms
Packaging Details: wooden case
Product Description
Product Description


Introduction:

This machine is suitable for mixing, kneading and dispersing chemical raw materials such as plastic, rubber, synthetic rubber, hot melt adhesive and various low viscosity materials.


Working principle:

The two rotors in the mixing chamber rotate under a certain speed ratio, and the material from the feeding port is clamped into the roll gap and squeezed and sheared by the rotor. After passing through the roll gap, it hits the "W" sharp edge of the mixing chamber and is divided into two parts. Respectively, along the gap between the front and rear chamber walls and the rotors the material get back to the top. The material is sheared and mixed under a certain pressure and temperature in the closed mixing chamber to make the formula material fully disperse and plasticize, so that the formula can exert the best effect.


SPECIFICATIONS FOR XH-420-10 LAB BANBURY MIXER






Technical Parameter
Mixing chamber volume
10L
Rotation angle
110℃
Drive motor
11KW
Flip motor
0.75KW
Rotor speed (front and rear)
40/31r min（frequency）
Heating method
electrical heating
Cooling system
running water cooling
Temperature range
room temperature - 300℃
Air source pressure
0.3-0.5mpa
Power supply
3phase, AC380V
Detailed Images

Machine Parts

Name: Control System

Brand: XH

Original: China

Key control system, easy to operate

Mixing Chamber

The mixing chamber is "W" shaped and uses a "M" shaped compression cap to form a fully enclosed mixing system. The mixing chamber
is made of high-carbon steel, and the surface is hard chrome-plated to increase the hardness, ensuring that the chamber is hard and wear-resistant. The mixing chamber can be turned over 110 degrees, and the mixing
shaft has the functions of forward rotation and reverse rotation, which makes the discharge more convenient and quick.

Certifications
Packing & Delivery
Packaging
Size
1900×1300×1500mm
Weight
1.2 T


Packaging Details


The normal package is wooden case.
