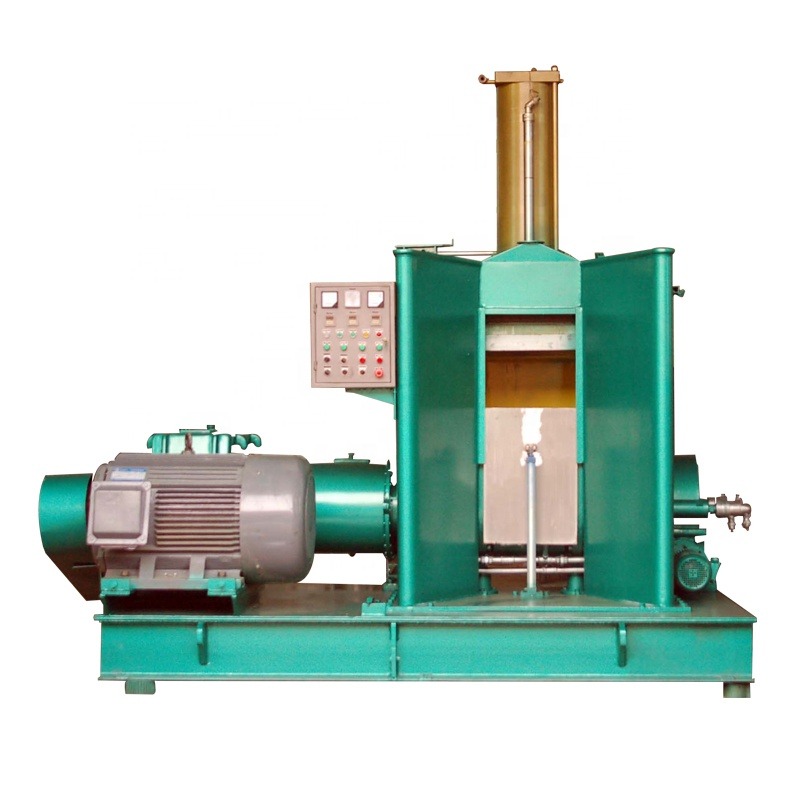

high quality 200L rubber dispersion kneader machine for rubber mixing
The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs. Below is the main technical parameters of the models:
Model | X(S)N- 10X32 | X(S)N- 20X32 | X(S)N- 35X30 | X(S)N- 55X30 | X(S)N- 75X30 | X(S)N- 110x30 | X(S)N- 150x30 |
Total volume of mixing chamber | 25L | 45L | 75L | 125L | 180L | 250L | 325L |
Working volume of mixing chamber | 10L | 20L | 35L | 55L | 75L | 110L | 150L |
Driving motor power | 15KW | 30KW | 55KW | 75KW | 110KW | 185KW | 220KW |
Tilting motor power | 1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW |
Tilting angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
Rotational speed of the rotor (front/rear) | 32/23.5 r/min | 32/25 r/min | 30/24.5 r/min | 30/24.5 r/min | 30/24.5 r/min | 30/24.5 r/min | 30/24.5 r/min |
Pressure of compressed air | 0.5-0.8 MPa | 0.5-0.8MPa | 0.5-0.8MPa | 0.6-0.8MPa | 0.6-08MPa | 0.6-0.8MPa | 0.6-0.8MPa |
Capacity of compressed air | ≥0.5m³/min | ≥0.7m³/min | ≥0.9m³/min | ≥1.0m³/min | ≥1.0m³/min | ≥1.5m³/min | ≥2.0m³/min |
Pressure of cooling water | 0.2-0.4 MPa | 0.2-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa |
Pressure of heating steam (plastic mixing) | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
Overall dimension | 2580X1300 X2280mm | 2630X1520 X2550mm | 3200X1900 X2950mm | 3280X1930 X3070mm | 3330X2620 X3340mm | 3930X3000 X3660mm | 4200X3300 X3900mm |
Weight | 3300Kg | 4500Kg | 6500Kg | 7800Kg | 10500Kg | 14500Kg | 19500Kg |
The series of rubber kneader machines are main used for molding and mixing the materials of natural rubber, synthetic rubber, recycled rubber or plastic, or blending rubber and plastic. They are also suitable for mixing a variety of low viscosity materials.
