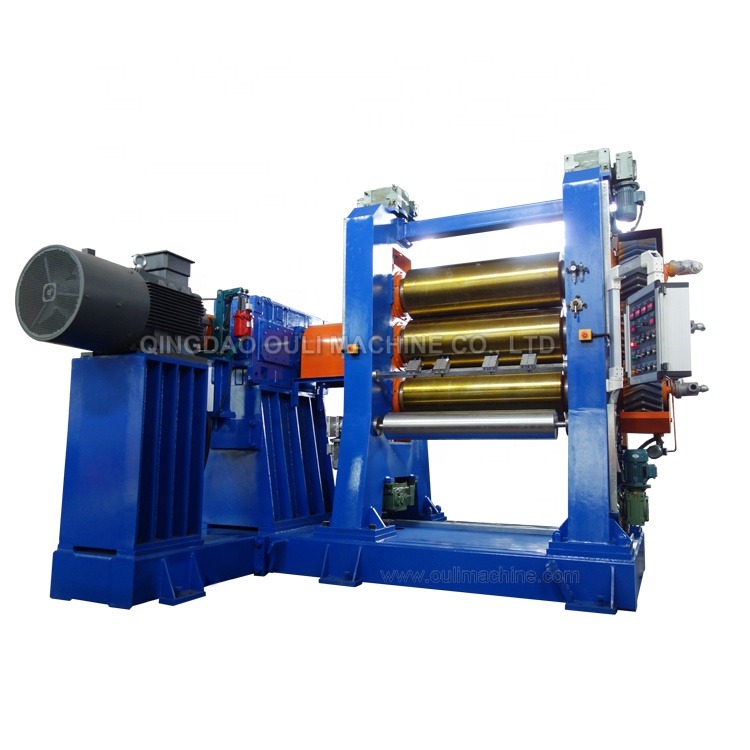

2020 Automatic Rubber calender line , Rubber Sheet making calendering machine
NAME : 2020 Automatic Rubber calender line , Rubber Sheet making calendering machine
Model: XY-4 400x1400
QINGDAO OULI MACHINE designs and manufactures complete range of rubber calenders with 2-4 rollers and width 250-2500mm for rubber industry to meet the very toughest production challenges, 4-roll "S" arrangement represents the heart of the calender.
Our calenders, furthermore, through shifting of rolls, roll bending, cross-axis and pre-loading, can be enriched by the most advanced automatic control and adjustment systems for thickness and profile of the film. These mechanisms, can be integrated with electronics, in order to offer calendering process control by gathering and automatically adjusting all precision production parameters. For the production of tires, in the end, the different types of plant or configurations is determined by the specific rubberizing technologies.
Parameters of 2020 Automatic Rubber calender line , Rubber Sheet making calendering machine
|
Specification & Type |
Roll Dia.×Length(mm) |
Mid-roll Liner Speed(m/min) |
Min.thickness for calendering(mm) |
Calendering width(mm) |
Motor power(KW) |
Overall dimension (L×W×H)(mm) |
Weight(t) |
|
XY-3I1120 |
360×1120 |
7.5~22.5 |
≥0.20 |
900 |
45 |
6050×1500×2240 |
11.6 |
|
XY-3L1120 |
360×1120 |
2~20 |
≥0.20 |
900 |
37 |
5500×1700×2300 |
11.7 |
|
XY-3F1400 |
400×1400 |
8.8~26.39 |
≥0.20 |
1200 |
55 |
5600×1410×2385 |
15 |
|
XY-3F1450 |
450×1450 |
2.5~25 |
≥0.20 |
1225 |
75 |
5850×1920×2870 |
22 |
|
XY-3F1600 |
510×1600 |
2.5~25 |
≥0.20 |
1375 |
90 |
6460×2500×3120 |
27 |
|
XY-3F1520 |
560×1520 |
1.5~15 |
≥0.20 |
1200 |
75 |
6730×2130×3595 |
35 |
|
XY-3F1830 |
610×1730 |
4.5~45 |
≥0.20 |
1500 |
55×3 |
8040×2700×4570 |
48 |
|
XY-3F2030 |
660×2030 |
3~35 |
≥0.20 |
1800 |
250 |
9000×2800×4850 |
86 |
|
XY-3F2540 |
810×2540 |
3~30 |
≥0.20 |
2300 |
400 |
10195×3340×5820 |
102 |
|
XY-3F3400 |
900×3400 |
0.54~5.4 |
≥0.20 |
3200 |
160 |
7900×4500×5680 |
150 |
Configuration of 2020 Automatic Rubber calender line , Rubber Sheet making calendering machine
Client workshop sample photos of 2020 Automatic Rubber calender line , Rubber Sheet making calendering machine
QINGDAO OULIMACHINE CO., LTD was located in beautiful huangdao city , the west
coast of Qingdao city Shandong province China. Ourcompany is specialized in
Rubber machinery production enterprise with R &D, design, production, sales
and service.
Certificate: CE/ ISO/ SGS/BV
OULI main products:
Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
Rubber calendaring machine: 2 roll ,3 roll, 4roll calender, calendaring line
Rubber vulcanizing machine: Four-column press, Frame press, E-type
press,tire and tube press , Belt vulcanizing press .
Rubber extruding equipment: Hot feed extruder,cold feed extruder
Automatic and semi-automatic waste tirerecycling equipment
Reclaimed rubber production line
The productshave been exported to many countries and districts around the
world, such as America, France, Canada, Australia, Southeast Asia, and the
Middle East. By theadvanced quality and service, our products have gained
the praise of domesticand foreign customers.
2020 Automatic Rubber calender line , Rubber Sheet making calendering machine
1. Delivery date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training works and maintenance of the machine
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: 1- 2 years guaranteed repair and lifelong tracking service,with
parts provided.
8. Package: Seaworthy packing or standard export wooden case
