Four Roll Rubber Calender Machine / Rubber Calendering Machine
Whatsapp:0086 13963993703
Application:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.
Main Features:
1.The machine is made of chilled castiron alloys,whose work surface has high hardness,so it is wear-resistant and durable.
2.While using,the steem,cooling water and heat-conducting oil can be passed into the roller's cavity,so that the working temparature can be adjusted in order to meet the technological requirement.
3.Roller space can be adjusted both by manual or electric mode.
4.Roller bearings' lubricating can adopt drier oil or dilute oil
Technical Spec.:
|
Model |
|
XY-31 630 |
XY-31 1120A XY-3 1120A XY-3 1120A |
XY-31 1400 |
XY-31 1200 XY-31 1500 |
|
Working diameter of rolls |
mm |
230 |
360 |
400 |
450 |
|
Working length of rolls |
mm |
630 |
1120 |
1400 |
1200(1500) |
|
Speed ratio |
|
1:1:1 1:1.42:1 |
1:1:1 0.733:1:1 0.733:1:0.733 |
1:1:1 1:1.385:1.385 1:1.385:1 |
1:1:1 1:1.5:1 |
|
Working linear speed of middle roll(m/min) |
mm |
7.97 |
7.0-21.06 |
8.8-26.39 |
8.36-25.08 |
|
Adjusting nip range ratio |
mm |
0-7 |
0-10 |
0-10 |
0-6 |
|
Min.Calendaring product thickness |
mm |
0.2 |
0.2 |
0.2 |
0.2 |
|
Calendaring product width |
mm |
100-500 |
500-920 |
1200 |
1100(1400) |
|
Driving motor power |
KW |
7.5 |
40/13.3 |
50/18.5 |
75/25 |
|
Overall Size |
mm |
2570×740×1500 |
5550×1640×2120 |
6350×1410×2385 |
6900×1910×2750 |
|
Weight |
kg |
4200 |
12750 |
16000 |
17000 |
Contact email: kim at qdtoplit dot com
Whatsapp/Wechat /Mobile: 0086 13963993703
Skype: toplitkim

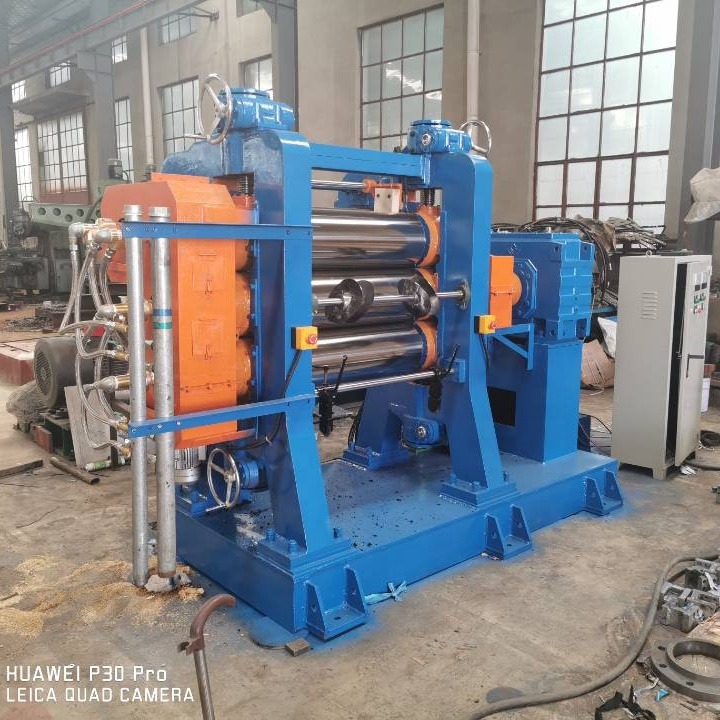

Reference photo:
