Non-woven fabric Calender for needle punching machine Ironing machine
It is suitable for heating treatment of nonwovens surface to reach required thickness, smoothness, hardness.
Heating method: electric or oil boiler.
Two kind of structural style: 2-rollers vertical and 3-rollers vertical.
Temperature is auto-controlled and digital displayed.
2-rollers calender

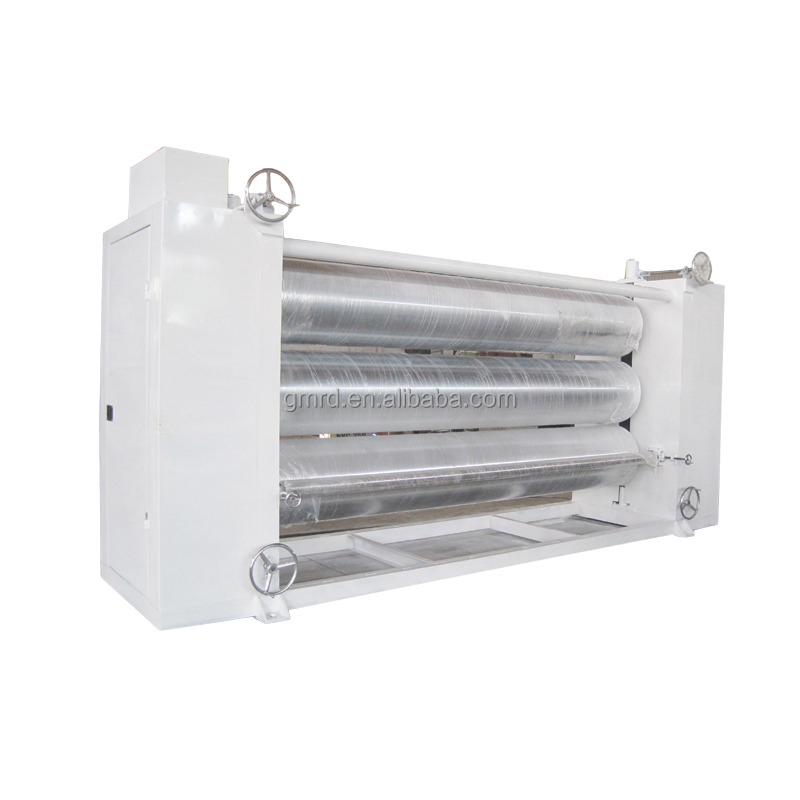

3-rollers calender
Technical parameter
| NO. | Item | Description |
| 1 | Model | GMC-200 |
| 2 | Running speed | ≤8m/min |
| 3 | Power | 25kw |
| 4 | Structural features | 1:Three-roll vertical, electric heat conduction oil heating insulation. The main body frame is made of high quality carbon steel welded together 2: At the bottom of the roller is adjustable, in the middle of the roller is fixed, the upper roller manual worm gear to adjust elevator, the adjusting range is 0 to 50mm |
| 5 | Heating roller | Φ510mm; Material of 45 # steel, wall thickness, 30mm roller surface 2000mm long, fine grinding hard chrome plated surface or tetrafluoroethylene adhesion. Adjustable surface temperature of 100 ~ 220 ºC |
| 6 | Power | 81 kw (every roller adopts nine hits 3 kw heating, electric heating tube is divided into three group control) |
Features:
1. Frequency conversion controlled speed.
2. Automatic temperature control ensuring constant heating temperature
3. Hermetic thermal oil makes the heating effect evenly.
4. Heating roller: Teflon surface
Details
Calender in production
Whole production line of nonwoven carpet / felt
Application
Our Certificate
Our Exhibition
Hot Sale Products
Our Services
After-sales service
For machine:
1.We will offer enough spare parts, the video of how to assemble.
2.The warranty of machine is 12 month.
For production line:
1.We will send 2-3 workers to do the installation and commissioning of the line as the request of the buyer. And the buyer should provide round-trip air plane tickets,accommodation and allowance.
2.The allowance is 60 dollars for one people per day.
