Home /Products/Embossing Calendering Machine/Garment Shops 1.2m Large Format Fabric Roller Sublimation Machine 220mm Diameter Roll To Roll Calender Press For Bed Sheet

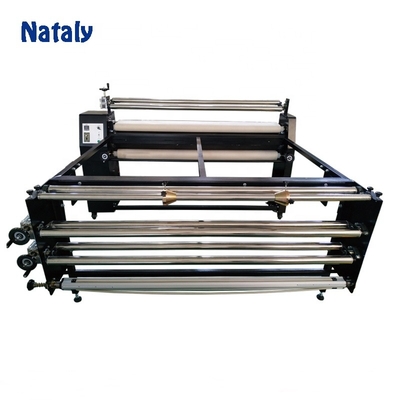

Garment Shops 1.2m Large Format Fabric Roller Sublimation Machine 220mm Diameter Roll To Roll Calender Press For Bed Sheet

1 Set
MOQ
Garment Shops 1.2m Large Format Fabric Roller Sublimation Machine 220mm Diameter Roll To Roll Calender Press For Bed Sheet
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Dimensions(L*W*H): 2750*1970*1390mm
Plate Type: Flatbed Printer
Weight: 700 KG
Automatic Grade: Automatic
Color & Page: Multicolor
Usage: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Voltage: 380V
Applicable Industries: Garment Shops, Retail, Printing Shops, Advertising Company, Other
Warranty: 1 Year
Print Dimension: 1100mm
Ink Type: None
Key Selling Points: High-accuracy
Marketing Type: Hot Product 2019
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: Bearing, Other
Model: 1200-220PT3
Blanket Width: 1220mm
Transfer Width: 1100mm
Transfer Speed: 20-80m/h
Temperature: 0-250℃
Heating Way: Oil Heat
Heating Power: 7.2kw
Total Power: 8kw
Machine Size: 2750*1970* 1390mm
Worktable Size: 2030*1350* 920mm
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Showroom Location: None
After-sales Service Provided: Online Support, Free Spare Parts, Video Technical Support
Certification: CE
Basic Infomation
Certification: CE
Model Number: 1200-220PT3
Payment & Shipping Terms
Packaging Details: wooden case Nataly 1.2m printing width oil temperature roller heat transfer machine with worktable Accept any size customization
Product Description
Product Overview

Nataly electric & oil heat transfer machine (Any size can be customized)

Suitable for the transfer of various materials. Ink and material surface are integrated to improve product quality. The printing pattern has strong sense of hierarchy, bright colors, small color difference and high definition. The design pattern can be perfectly displayed on the printed matter to meet the mass production of printed materials.
FEATURES AT A GLANCE



Wide range of applications
Low labor/low cost
High printing efficiency, suitable for mass production
Energy saving and environmental protection
Easy to use
Strong error correction
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model
1200-220PT3
1700-220PT3
1900-270PT3
2000-270PT3
Blanket width
1220mm
1720mm
1920mm
2020mm
Transfer width
1100mm
1600mm
1800mm
1900mm
Voltage
380V
380V
380V
380V
Transfer speed
20-80m/h
20-80m/h
20-100m/h
20-100m/h
Temperature
0-250℃
0-250℃
0-250℃
0-250℃
Feeding system
3 sets
3 sets
3 sets
3 sets
Take up system
3 sets
3 sets
3 sets
3 sets
Drum diameter
220mm
220mm
270mm
270mm
Drum material
Teflon coating
Teflon coating
Teflon coating
Teflon coating
Blanket deviation alarm
Optional
Optional
Optional
Optional
Automatic cooling
Optional
Optional
Optional
Optional
Delayed shutdown
Optional
Optional
Optional
Optional
Blanket adjustment form
Manual
Manual
Manual
Manual
Heating power
7.2kw
8.2kw
12kw
 14kw
Total power
8kw
9kw
12.8kw
 14.8kw
Heating way
Oil
Oil
Oil
Oil
Machine size
2750*1970*
1390mm
2750*2470*
1390mm
2780*2670*
1420mm
2780*2770*
1420mm
Worktable size
2030*1350*
920mm
2030*1850*
920mm
2030*2050*
950mm
2030*2150*
950mm
Weight
700kg
800kg
1150kg
1250kg
PRODUCT CONFIGURATION
Smart control panel
Automatic correction design
Roller pressure design
Tension adjustment
Power Controller
Precision circuit line control
Our other models of heat transfer machines
Our factory
Exclusive manufacturing plants and workshops, exclusive product research and development personnel, more than ten years of machine manufacturing experience, new product development and manufacturing capabilities, mature market channels, global marketing strategies, and welcome partners from various countries to visit on site.
FAQ
1.Can I get a free sample for a testing?
A. Sure, you can send us the material you want to print, we will test it for you and take photos and videos for your reference, if you want to see it, just pay the shipping cost is ok.

2.How long warranty period you provide for your products?
A. All machine of us have 12months warranty from the day you begin use the machine.

3.Do you have all consumables for your machine?
A. Yes, all consumables of our machine is avaliable, just contact us and tell us your requirement.

4.Can I install the machine easily?
A. Yes, the machine support all kinds of operate system, and there is CD and manual matched during paking, you can see the CD install by yourself. Also you can ask us for help, we will use teamviewer assist you online on problem.

5.How to buy your machine?
A. You can place Protection Order on Alibaba directly, or let us know the detailed you need, we will make proforma invoice with our bank information for you confirm, and we will delivery the goods accordingly after get payment, and let you know the tracking number(or send you B/L) then.

6.Do you take part in the exhibition?
A. Yes, we take part in exhibition in Shanghai, Guangzhou each year, and we will send email to inform you some days in advance, and welcome to our booth in that time.
