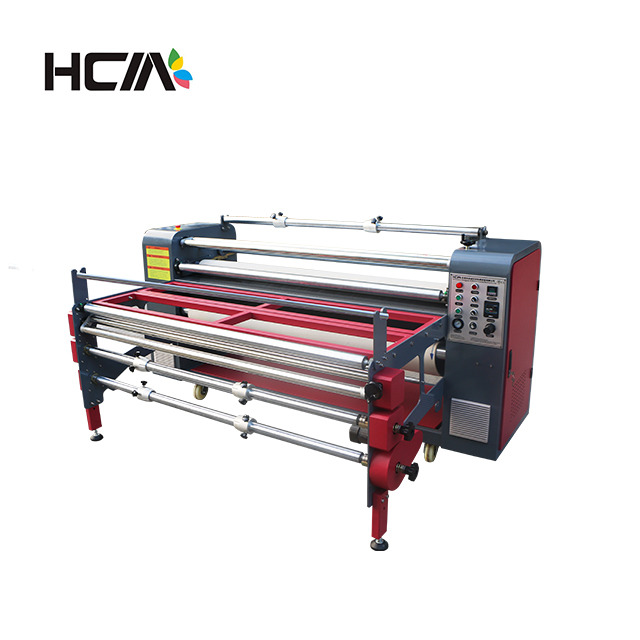

HCM-F2017C
Product feature
1.Roller surface with Telflon coat,high hardness,wear resistant,anti-sticking
2.Digital temperature and speed hardness,wear resistantmanti,temperature is even
3.Oil heating,temperature uniformity (±1-2°C),no deviations of color
4.Using imported heating pipes,heating even,durable;Imported DuPont material from America Blanket,which is not ease to deviate
5.The Blanket is detachable,and not easy to burn,with belts putting device for installing and fixing the belts.longer sevice life
6.Without smoke and abnormal odour during working
Product parameter
| Heating power | 10kw |
| Diameter of oil drum | 200mm |
| Printing speed | 40-80m/hour |
| Voltage | 220v/380v |
| Max temperature | 240°C |
| Transfer width | 1700mm/66.9'' |
| Diameter of oil drum | 200mm/7.8'' |
| Working table | Yes , but no glass |
| Machine dimension | 2030mm*1200mm*1320mm |
Use the computer to devise the designed pattern,print it on the specific transfer paper through digital
printer by using sublimated ink,and then become transfer printing paper.
Let the transfer paper which has design cling to the fabric and feed together into the roller heat printing
machine.Through high temperature and high pressure,sublimation ink on the transfer paper will transfer to
fabric by pneumatolysis,printing is completed and tailor the printed fabric to become clothes.
Packaging:
High speed digital sublimation printing rotary heat press machine packing will be made according to customers’ requirements.
Here is safe packing method as below:
Machine will have PVC bag and foam inside ,iron frame outside.
Iron frame is used for all parts of the machine together and protect the macine.
1.Technical support of the digital heat printing machine are available for ever
2.Technical support of fabric printing&printer are available for ever
3.Operation description&attention matters are available for ever
4.Operation videos of the machine is available for ever
5.Engineers available to service machinery overseas
6.Free apare parts available(one temperature controller,one set of carbon brush,one group of heating pipes)
7.Help customers to find paper,ink,protecting paper,and any other printing material freely
8.Fabric and ribbon heat printing business available.
