Features

Specifications

Condition: New

Voltage: 220V/380V/415V (3 Phase)

Dimension(L*W*H): 3200*900*1850

Warranty: 2 Years

Type: Rubber Calender

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Power: 7.5-220KW

Weight: 2-90 Ton

Certification: ISO

Product Name: Three Roller Calender

Application: Rubber Sheet Producing, Coat Rubber On Fabric

End Product: Rubber Sheet, Rubber Coating On Nylon Fiber

Capacity: 200kg/h-4000kg/h

Properties: Long Service Life

Technology Service: Engineer Available

HS Code: 8477

Basic Infomation

Certification: ISO

Payment & Shipping Terms

Packaging Details: Pallet +PE film

Supply Ability: 4 Set/Sets per Month

Product Description

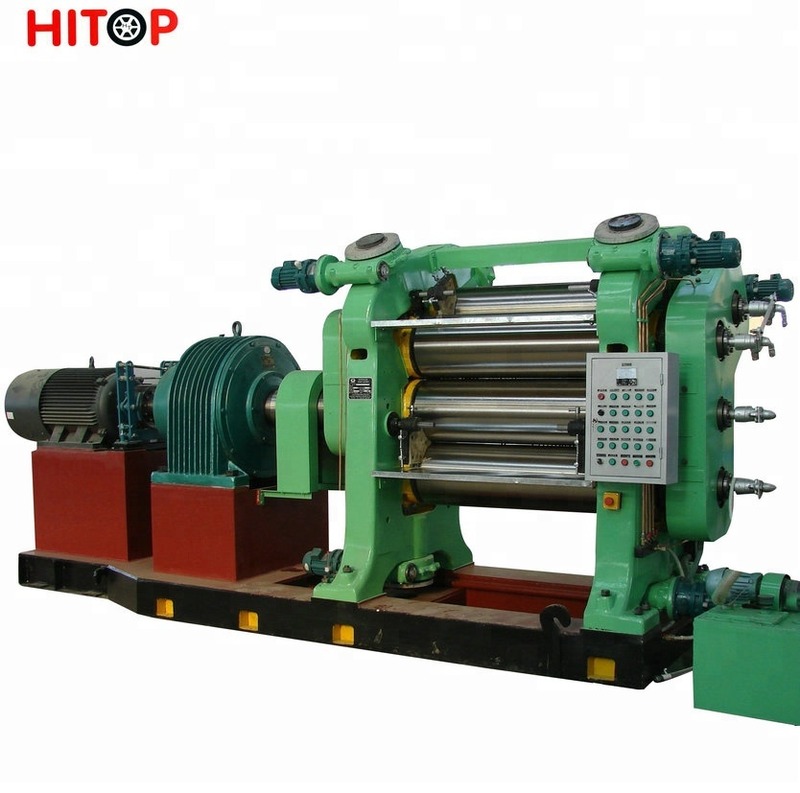

Four roller rubber sheet calender machine

Machine specification

Size		XY-4I/L/Γ 630	XY-4Γ 1200	XY-4Γ1400	XY -4Γ1500	XY-4Γ 1730	XY-4Γ 2130	XY-4Γ 2430
Roller dia	mm	230	360	400	450	610	710	810
Roller wording length	mm	630	1120	1400	1500	1730	2130	2430
Roller ratio		1:1:1:1	0.73:1:1:0.73	1:1.383:1.383:1	1:1.5:1.5:1	1:1.4:1.4:1 1:1.4:1.4:1.4	1:1:1 1:1.48:1	1:1.5:1.5:1
Middle roll linear speed	r/min	2.1-21	2-20.1	3-26.3	2.5-25	8-50	8-50	2-20
Adjusting range	mm	0-10	0-10	0-10	0-6	20	0-20	0.5-25
Min.calendering product thickness	mm	0.2	0.2	0.2	0.2	0.15	0.15	±0.1
Calendering product width	mm	100-500	500-920	1200	1250	1500	1900	2150
Motor power	KW	15	55	75	110	160	185	280
Overall dimensions	L	mm	3300	6600	6500	6580	7010	9800
	W	mm	940	1620	1970	2460	4150	4260
	H	mm	2350	2490	2740	2920	3730	5720
About weight	T	4.8	14.6	18.6	33.5	62	100	126

More machine picture

XY-4I/L/Γ230x 630

XY-4Γ 360x1120 XY -4Γ450x1500

XY-4Γ560x1730
