calendering fabric/calendar roller / rubber calender machine/calendered sheet
Application:

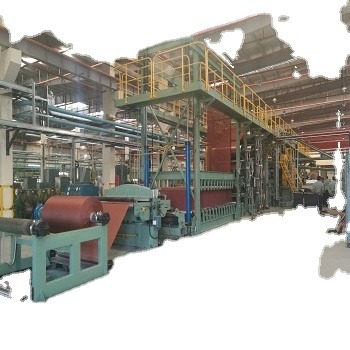

The fiber cord fabric add tension calendering line is used for coating rubber for fiber cord fabric.
The production line includes: Letoff device,Front tension rack,Rear tension rack,cooling traction machine,
rear cloth storage,rear traction machine,wind-up device,etc.
Main tension zone is installed with tension protector for display,and with width expansion and edge expansion device,and 4 sets of motor-set-center devices,ensuring cord fabric smooth without deformation. Electric control adopt PLC and full digital speed adjusting device.
|
Model |
Mid-roller liner speed(m/min) |
Thickness for calendering(mm) |
Calendering width(mm) |
Motor power(KW) |
Overall dimension(LxWxH)(mm) |
Weight(t) |
|
XY-4Γ1600 |
3.5~30 |
≥0.20 |
1400 |
144 |
6270x2960x4100 |
45 |
|
XY-4Γ1730 |
5.4~54 |
≥0.20 |
1500 |
240 |
7050x4150x3750 |
63 |
|
XY-4S1730 |
6~60 |
≥0.20 |
1500 |
90(1#4#)110(2#3#) |
5600x1410x2385 |
85 |
|
XY-4S1850 |
7~70 |
≥0.20 |
1500 |
90(1#4#)110(2#3#) |
8700x4250x5050 |
112 |
Nanjing Mixer Industrial Co., Ltd is the rubber machines producer and exporte,hope to cooperate with you.
